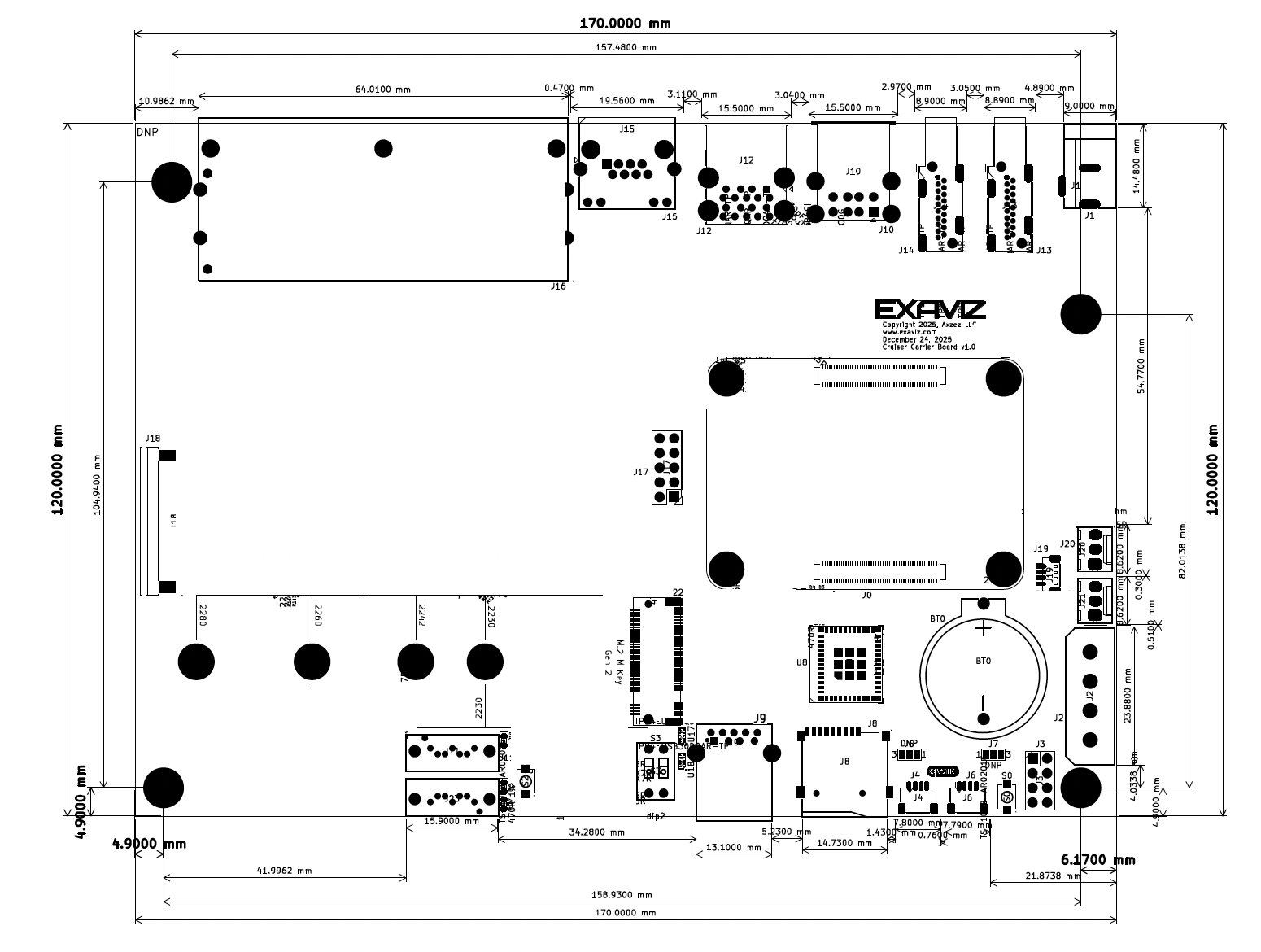

Cruiser Carrier Board
Documentation for the Exaviz Cruiser Carrier Board - an all-in-one NVR, smart home hub, and PoE switch for Raspberry Pi CM5.
2 minute read
The Cruiser Carrier Board is a next-generation carrier board for Raspberry Pi CM5 with built-in 8-port PoE+, 2.5GbE WAN, NVMe storage, and smart home connectivity via ESP32-C6.
Key Features
- Built-in Gigabit Switch — Up to 8 ports with optional PoE+ (IEEE 802.3at, 30W/port) depending on model
- 2.5 Gigabit WAN — High-speed network uplink via RTL8156BG (all models)
- NVMe + SATA Storage — M.2 Key-M slot plus 2x SATA III ports
- Smart Home Ready — WiFi 6, Bluetooth LE 5.3, and Zigbee via ESP32-C6
- Dual 4K Display — 2x HDMI 2.0 outputs (4Kp60)
- Qwiic Expansion — 2x I2C connectors for sensors and modules
Product Variants
| Model | Price* | 1GbE Switch Ports | PoE Support | Best For |
|---|---|---|---|---|
| Cruiser | $149 | 8 (2x4 stack) | PoE+ (30W/port) | NVR, PoE Switch |
| Cruiser Lite | $119 | 4 (2x2 stack) | PoE+ (30W/port) | Small installs |
| Cruiser Keel | $99 | 4 (2x2 stack) | None | Non-PoE builds |
Prices shown are MSRP. Visit the Exaviz Store for current pricing.
All variants include 2.5GbE WAN, M.2 NVMe, SATA, USB, HDMI, and ESP32-C6.
Custom Configurations
Need a different configuration? Contact us at info@exaviz.com. We can customize Cruiser and Interceptor boards to meet your specific requirements.
Cruiser vs Interceptor
| Feature | Cruiser | Interceptor v2.0 |
|---|---|---|
| CM Support | CM5 only | CM4, CM5, BPi CM4 |
| 1GbE Switch | 4-8 ports (model dependent) | 4 ports |
| Built-in PoE | Up to 8 ports (model dependent) | 0 (add via PoE Board) |
| WAN Speed | 2.5 GbE | 1 GbE (via 4-port switch) |
| NVMe | Yes (M.2) | No |
| SATA Ports | 2 | 5 |
| Wireless | WiFi 6/BLE/Zigbee | None |
| Power Input | 48-57V DC barrel (PoE) / 13-60V (Keel)* | 24-pin ATX |
| Best For | NVR, Smart Home | NAS, Storage Server |
*48V minimum for PoE models; Keel (non-PoE) can use 13V+
Documentation Sections
Getting Started
Initial setup, requirements, and first boot. Get Started →
Hardware Interface
Connector reference, pinouts, and board layout. View Hardware →
Specifications
Complete technical specifications. View Specs →
Software
WiFi, PoE control, storage setup, and configuration. View Software →
FAQ
Frequently asked questions. View FAQ →
Resources
- Product Brief (PDF) - Cruiser Carrier Board overview
- Product Brief for OEMs (PDF) - OEM and B2B configurations
- Product Brief for Makers (PDF) - Enthusiast and maker builds
